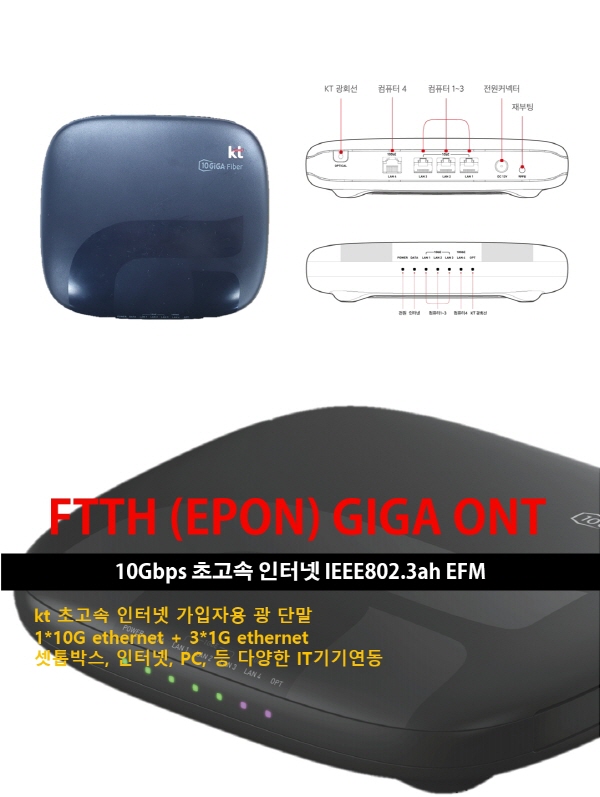

10G EPON ONT

10G EPON ONT 제품규격

• 10Giga bps 광전송 단말장치
• CA8271A ARM926 500MHz
• 1G NAND/2G DDR3 memory
• LAN : 1x10GE(Nbase-T) + 3x1GE
• Up 8.3G / Down 8.7G 전송속도
• 10G symmetric

10G EPON ONT주요기능

• Tx/Rx광파장 : 1270nm/1577nm
• Software Upgrade
• DHCP Option 254 reporting
• LLID (Logical Link Identifier)
• IEEE 802.1d STP (Spanning Tree Protocol)
• VLAN 기반의 ACL(Access Control Level) (16개)
• IEEE 802.1q (VLAN, Double Tag)

10G EPON ONT 관리기능

• Watch-Dog / Guard-Dog기능
• 장애 관리(Fault Management)
• Switch 행업시 자동복귀기능
• CPU행업시 셀프셧다운기능
• Over voltage alarm reporting
